Parameter
|
Specification
|
|
Channel Center Wavelength
|
1528.77~1605.74nm(ITU
100GHz Grid)
|
|
Channel
Spacing
|
100GHz
|
200GHz
|
|
Min
Channel Passband
|
ITU 0.12nm
|
ITU0.25nm
|
|
Max
Add/Drop Channel Insertion Loss
|
1.0dB(0.70dB typ.)
|
0.80dB(0.50dB
typ.)
|
|
Max
Add/Drop Channel Insertion Loss Variation
|
0.35dB
|
0.25dB
|
|
Max
Remaining Channel Insertion Loss
|
0.40dB(0.30dB typ.)
|
0.40dB(0.25dB typ.)
|
|
Min
Adjacent Channel lsolation
|
25dB
|
30dB
|
|
Min
Non-adjacent Channel lsolation
|
40dB
|
40dB
|
|
Min
Add/Drop Channel Isolation
|
12dB
|
12dB
|
|
Max
Insertion Loss Temperature Sensitivity
|
S,N: 0.25dB ; C: 0.15dB
|
|
Min
Directivity
|
45dB
|
50dB
|
|
Min Return
Loss
|
50dB
|
|
Max
Polarization Dependent Loss
|
0.10dB
|
|
Max
Polarization Mode Dispersion
|
0.15ps
|
0.10ps
|
|
Max Power
Handling
|
500mW
|
|
Max
Tensile Load
|
5N
|
|
Operating
Temperature
|
-5 to +70
|
|
Storage
Temperature
|
-40 to+85
|
|

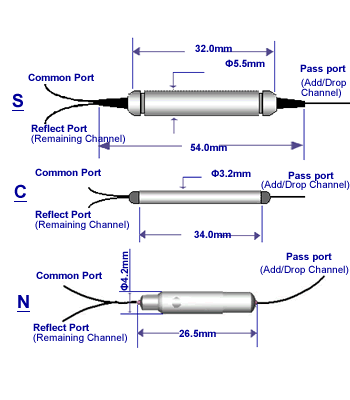

Package Dimension(DxL)
|
S:( )5.5mm*(L)32mm
C: ()3.2mm*(L)34mm
N: ()4.2mm*(L)26.5mm
|
